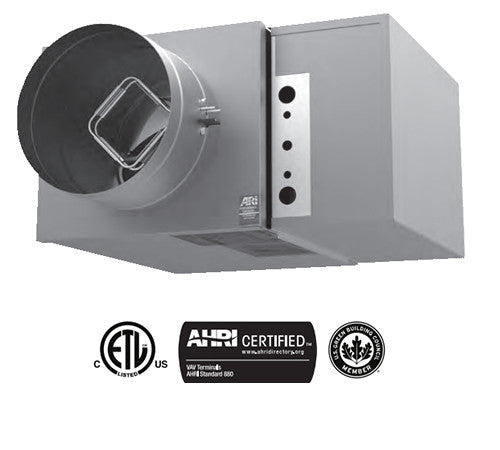

METALAIRE- Air Terminal Units, Cooling Only Single Duct with Pneumatic Controls

By Metal*Aire

$738.00

FEATURES:
  • Air terminal, cooling only with single round inlet and rectangular outlet. Packaged one per carton to protect terminal and controls.
  • Controls: #115M pressure independent pneumatic spring return actuator mounted and connected, normally open. Direct acting pneumatic room thermostat is not included and must be furnished by others.
  • Internally insulated with ThermoPure 1/2" thick, 1.5 lbs./ft density fiber free liner and complies with UL 181 and NFPA 90A.
  • AHRI Certified 880 Air Terminal. ETL or UL Listed.
  • Construction: 22 Ga. galvanized casing, single blade gasketed damper in round tube inlet, 20 ga. galv. control mounting panel with metal cover, multi-point inlet flow sensor with external ports.

  SUBMITTALS
  CATALOG SECTION WITH PERFORMANCE DATA (32 pages)
